Precision Control for Advanced Chemical Synthesis and Reactions

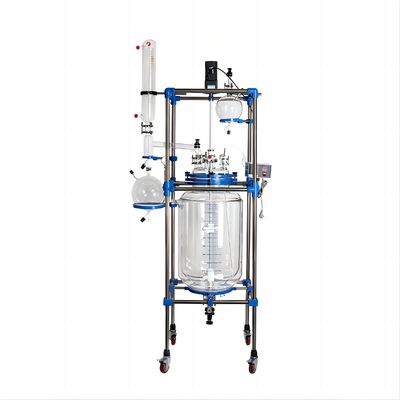

A double layer jacketed chemical glass reactor is a sophisticated apparatus designed to precisely control and execute chemical reactions. Featuring an inner vessel, an outer jacket for efficient temperature regulation, and robust construction, this reactor provides a stable and adaptable environment for a wide range of chemical processes. Its primary function is to ensure reactants are combined and manipulated under optimal, specified conditions, leading to predictable and desired outcomes in chemical synthesis.
| Model | Capacity (L) | Vacuum Degree (Mpa) | Motor Power (W) |
|---|---|---|---|
| PGR-80 | 80 | 0.098 | 250 |
| PGR-100 | 100 | 0.098 | 250 |
| Model | Volume Range (L) | Rotation Speed (rpm) | Torque (Nm) |
|---|---|---|---|
| PGR-80 / PGR-100 | 80L-100L | 50-600 | 3.98 |
| Model | Power (V) | Working Temperature | Heating Method |
|---|---|---|---|
| PGR-80 / PGR-100 | 220 | -350°C (Note: This value seems unusually low and might be a typo in the source data. Typically, working temperatures are positive. Please verify.) | Thermal Oil Heating |
| Model | Dimensions (mm) | Core Components | After Warranty Service |
|---|---|---|---|
| PGR-80 | 1000*700*2500 | Engine, Motor | Online support |
| PGR-100 | 1000*700*2700 | Engine, Motor | Online support |
| Model | Neck No. on Cover | External Diameter of Inner Vessel (mm) | External Diameter of Outer Vessel (mm) |
|---|---|---|---|
| PGR-80 | 6 | 410 | 465 |
| PGR-100 | 6 | 465 | 500 |
| Model | Cover Diameter (mm) | Vessel Height (mm) | Automatic Grade |
|---|---|---|---|
| PGR-80 | 340 | 950 | Automatic |
| PGR-100 | 340 | 950 | Automatic |
